PURCHASER is responsible for submitting warranty documentation for appliances, equipment, or other items of personal property (which have warranties provided by their manufacturer). BCUBED provides no warranty for any item which it did not manufacture, including appliances and equipment. Warranties from the manufacturer of the appliances and equipment may be available.
PURCHASER is responsible for care and maintenance of building, appliances, and equipment. BCubed is not responsible for building maintenance or issues caused by lack of maintenance. It is recommended you follow manufacture guidance for care and maintenance.

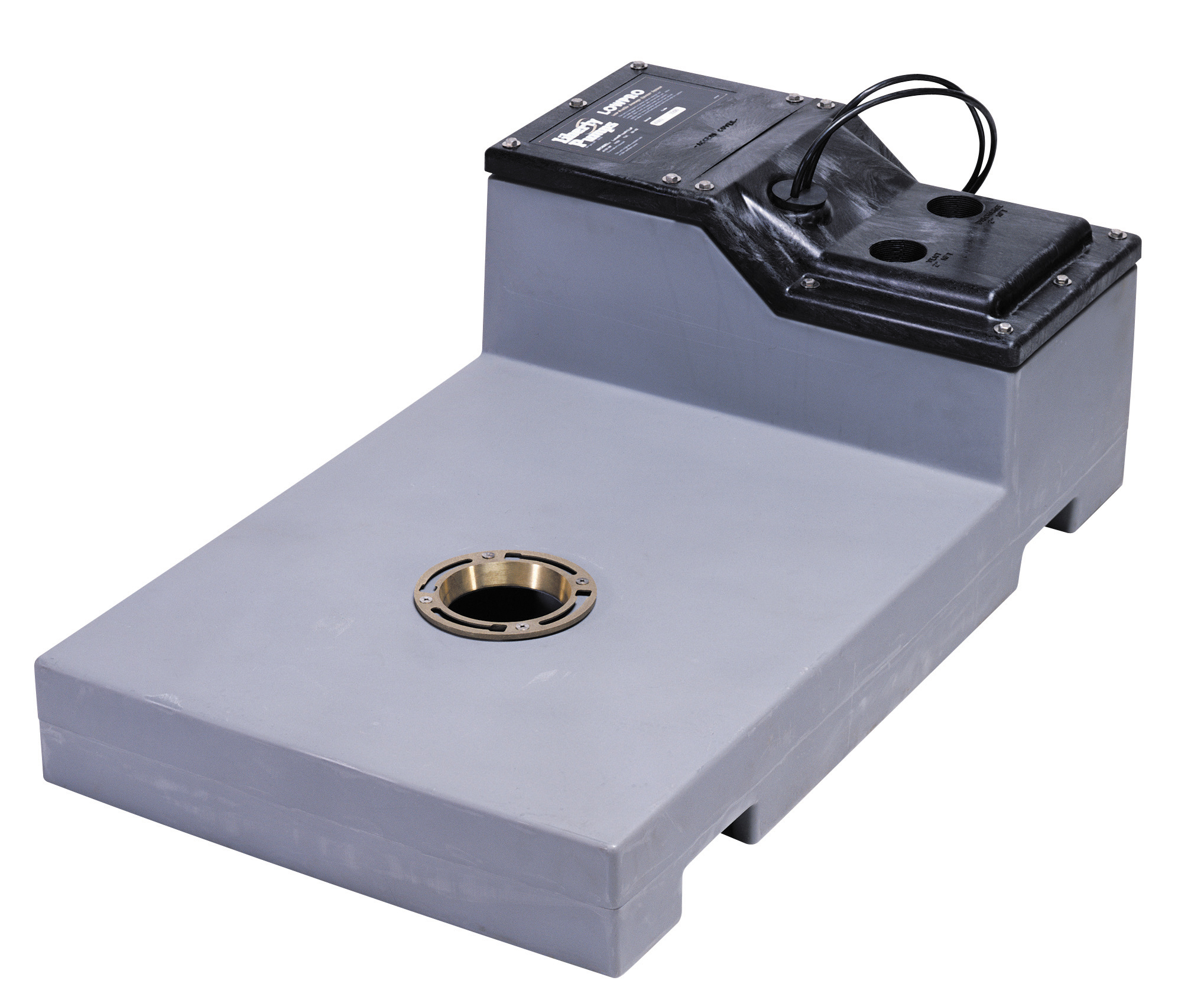

The Liberty LowPro system is designed to accept wastewater from a toilet but can also simultaneously receive wastewater from several sanitary fixtures such as a sink, shower, or bathtub. The LowPro features an internal jet spray to help break down solids and reduce jamming. Due to limited water volumes per pump cycle on systems of this type, care must be taken to avoid flushing extreme amounts of toilet paper or any reinforced papers, paper towels, sanitary products and other foreign objects into the LowPro.
Product Information: Liberty Pump LowPro51LP
Warranty: Warranty
Manufacturer Care and Maintenance Recommendations: Maintenance and Trouble Shooting
A routine of regular cleaning will keep the LowPro in good working order. The exterior of the unit may be cleaned with a damp cloth and normal household cleaners. Never spray or dump water or chemicals directly on the unit.
Green Gobbler products have proven to be effective in keeping drains clean and fresh.
See photo for recommended placement of Green Gobbler Fresh Scent Drain Stick in toilet tank.

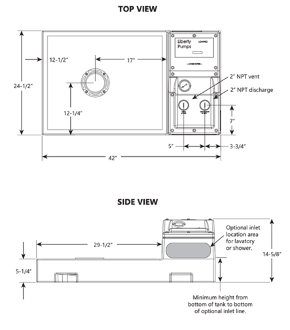

A cover is provided for easy access to the tank and switch without disturbing the discharge or vent pipe. The LowPro features an internal jet spray to help break down solids and reduce jamming.
Due to limited water volumes per pump cycle on systems of this type, care must be taken to avoid flushing extreme amounts of toilet paper or any reinforced papers, paper towels, sanitary products, and other foreign objects into the LowPro.
The system starts automatically once the toilet is flushed or liquid from other fixtures enters the unit. It automatically shuts off once the contents have been pumped away. Run times will vary depending on inflow and source.

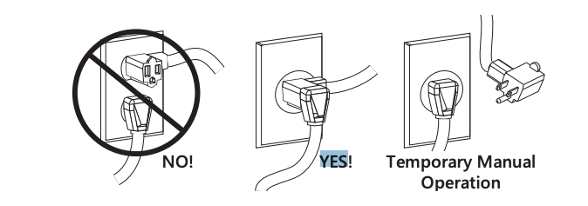

Cords: LowPro systems come with two cords—one to the float switch and the other to the pump motor. The float switch cord has a piggyback (series) plug enabling the pump motor cord to be plugged into the back of it. Both cords must be connected in series for automatic operation. The purpose of this design is to allow temporary manual operation of the pump. For manual operation, or in the event of a float switch failure, the pump cord can be separated and plugged into the electrical outlet, directly bypassing the switch.
• Do not use bleach or sodium hydroxide cleaners on this system.
• Do not dispose of materials such as paint thinner or other chemicals down drains. Doing so could chemically attack and damage pump system components and cause product malfunction or failure.
• Do not use pumps with fluid over 140°F (60°C). Operating the pump in fluid above this temperature can overheat the pump, resulting in pump failure.
• Do not use an air admittance valve or a mechanical spring-loaded venting device.
• Do not allow pump to freeze.
• Do not use pump system with mud, sand, cement, hydrocarbons, grease, or chemicals. Pump and system components can be damaged from these items causing product malfunction or failure. Additionally, flooding can occur if these items jam the impeller or piping.
• Do not introduce any consumer item that is not toilet paper into a non-grinder (dewatering, effluent, sewage) pump/ pump system. This includes, but is not limited to the following: feminine products, wipes, towels, towelettes, dental floss, swabs, pads, etc. Items such as these put the pump under undo strain and can result in pump/pump system failure. Additionally, it creates conditions for discharge line blockage.
_________
Building Warranty: (Purchase Order Excerpt) BCubed Manufacturing LLC warrants the UNIT against defects in original materials or workmanship for a period of one (1) year from the installation date of the new UNIT. BCUBED will repair or replace, at its option and at no charge to PURCHASER, any work that is objectively defective, provided notice of the defect is given within the one-year warranty period. This warranty does not cover (1) finishes on wearing surfaces including floors (2) caulking (3) settling issues caused by subsoil conditions or defective foundation work (4) expansion, contraction, or settling cracks normal to construction (5) appliances, equipment, or other items of personal property (which may or may not have warranties provided by their manufacturer) (6) loss or damage due to flood, wind or other acts of nature or casualty losses.
EXCEPT FOR THE EXPRESS WARRANTY SET FORTH IN THIS PROVISION, SELLER MAKES NO WARRANTY WHATSOEVER REGARDING THE GOODS, INCLUDING ANY (1) WARRANTY OF MERCHANTABILITY; (2) WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE; (3) WARRANTY OF TITLE; OR (4) WARRANTY AGAINST INFRINGEMENT OF INTELLECTUAL PROPERTY RIGHTS OF A THIRD PARTY; WHETHER ARISING BY LAW, COURSE OF DEALING, COURSE OF PERFORMANCE, USAGE OF TRADE, OR OTHERWISE.
PURCHASER ACKNOWLEDGES THAT IT HAS NOT RELIED ON ANY REPRESENTATION OR WARRANTY MADE BY SELLER, OR ANY OTHER PERSON ON SELLER’S BEHALF, EXCEPT AS SPECIFICALLY PROVIDED IN THIS PROVISION.
This warranty is not transferrable. BCUBED’s obligation under this warranty is limited to repair or replacement of defective materials or workmanship and consequential or incidental damages are specifically excluded. In no event will BCUBED’s liability under this warranty exceed the total amount paid by PURCHASER to BCUBED under this AGREEMENT.
Should equipment be installed or later moved to a location different than shown on the UNIT construction plans or if electrical outlets are used contrary to labeling provided, PURCHASER may experience circuit overloading, issues with tripping breakers, or damage to equipment which is not BCUBED’S responsibility.
PURCHASER is responsible for submitting warranty documentation for appliances, equipment, or other items of personal property (which have warranties provided by their manufacturer). BCUBED provides no warranty for any item which it did not manufacture, including appliances and equipment. Warranties from the manufacturer of the appliances and equipment may be available.
Intellectual Property. All design, concept, drawings, plans, and specifications of the BCUBED® structure sold to Purchaser are the sole and exclusive intellectual property of BCubed Manufacturing LLC and its owner. Some of the intellectual property is covered by pending and existing patents. See U.S. Patent No D911,533, D937,437, 11,536,043. PURCHASER’S sole right to such intellectual property is limited to utilizing same for the UNIT purchased in this AGREEMENT. PURCHASER and professionals engaged by PURCHASER may not copy, duplicate, share with others such plans, drawings, specifications, etc. for the UNIT without the prior written consent of BCubed Manufacturing LLC and/or its owner. Such consent is at the sole and absolute discretion of the owner of this Intellectual Property and may be denied.
