Reverse Osmosis System

PURCHASER is responsible for submitting warranty documentation for appliances, equipment, or other items of personal property (which have warranties provided by their manufacturer). BCUBED provides no warranty for any item which it did not manufacture, including appliances and equipment. Warranties from the manufacturer of the appliances and equipment may be available.

PURCHASER is responsible for care and maintenance of building, appliances, and equipment. BCubed is not responsible for building maintenance or issues caused by lack of maintenance. It is recommended you follow manufacture guidance for care and maintenance.

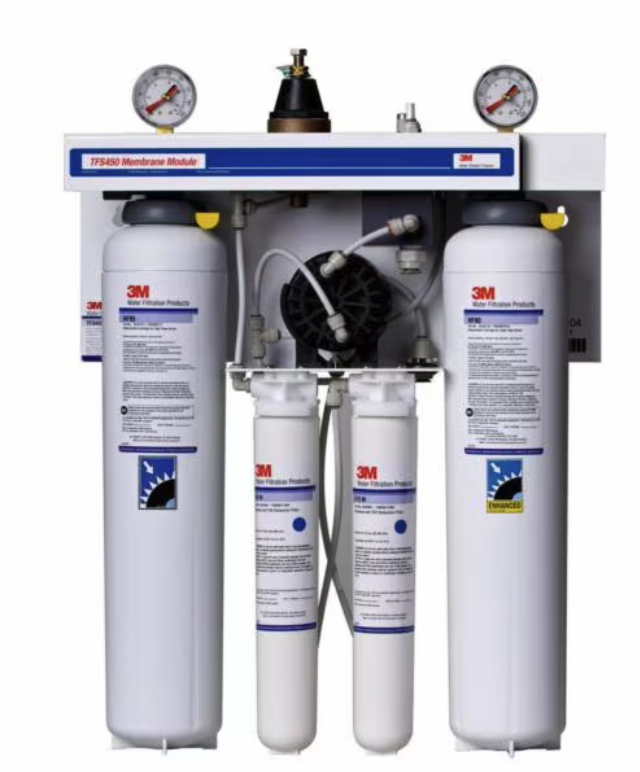

Your BCubed® for BIGGBY® COFFEE building is equipped with a 3M™ Water TFS450 Reverse Osmosis Water Filtration System. It also includes two 27,000-gallon filters. Each filter has a life expectancy of one year. One filter is installed in the unit when your building is delivered. The spare filter is attached to the wall near the RO system in the mechanical tower.

The TFS450 is intended for use in filtering potable water for foodservice coffee, espresso, cold beverage, and steamer equipment and has not been evaluated for other uses. In the BCubed® for BIGGBY® COFFEE building the RO system feeds the espresso machine.

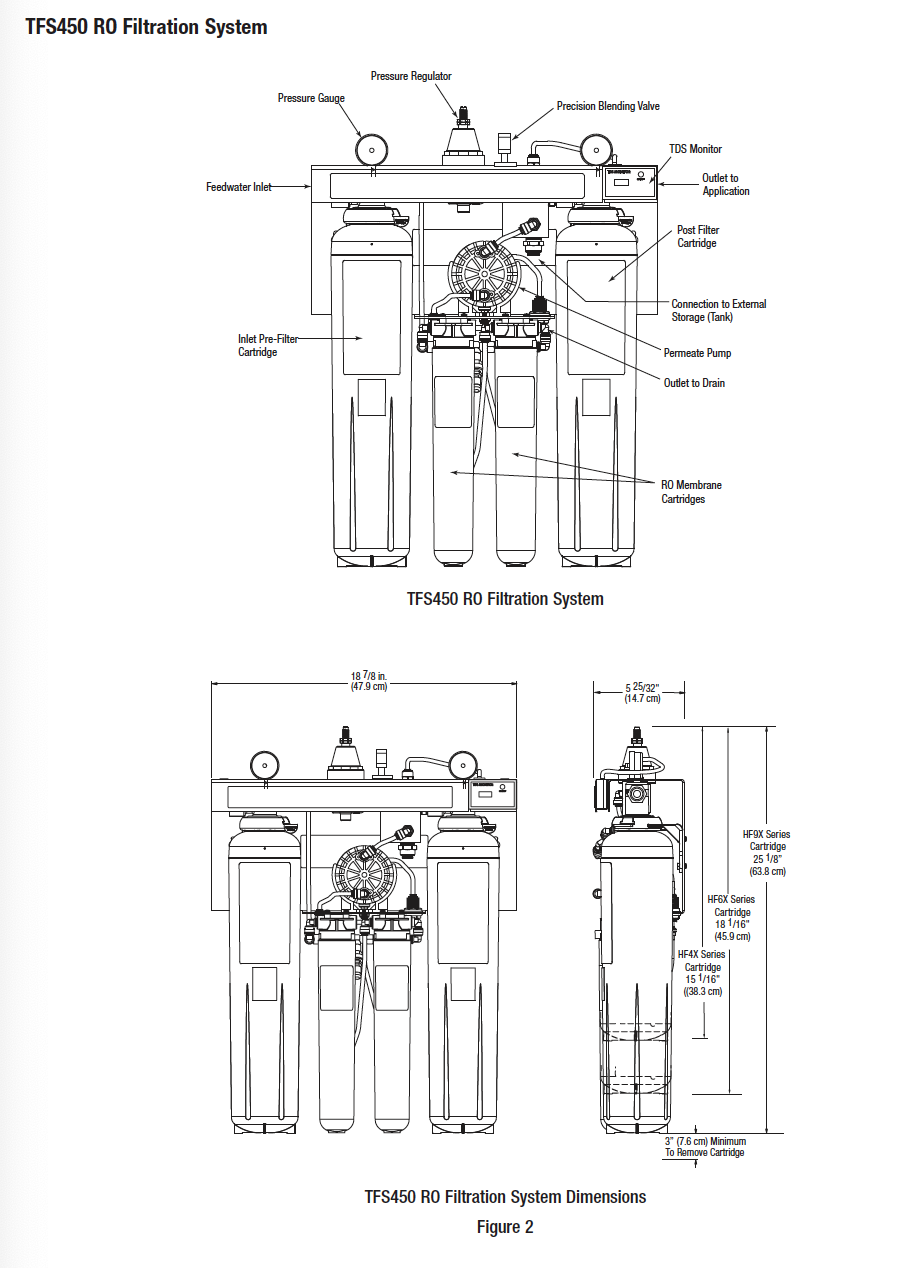

Product Information: 3M™ TFS450 Series Reverse Osmosis System

Quick Installation Guide: Installation Guide

Warranty:

Start-Up Procedure

At startup, the procedures outlined below must be completed in the sequence:

1. Measure and Adjust tank Air Charge
2. Adjustment of TDS (Total Dissolved Solids) by Setting the Blending Valve
3. Automatic Bypass Pressure Adjustment

Tank Air Charge Adjustment

IMPORTANT NOTICE: Improper tank precharge pressure will impact system water production. The tank precharge pressure must be adjusted at start-up. Tank precharge pressure must then be adjusted annually.

IMPORTANT NOTICE: The tank is empty as supplied. If measuring and adjusting the tank pressure after start-up, be sure the tank is empty.

1. If you have booster pump, unplug. Close the inlet water shut-off valve and the outlet (product) water shut-off valve.
2. Open the tank shut-off valve and drain the tank. If conducting the re-adjustment after start-up, the tank may be emptied through either the tank sample valve or the sample valve on the outlet line. Leave one or both of these open during the measurement and adjustment.
3. Locate the Schrader Air Valve on the tank. Using a standard bicycle or automobile pressure gauge that is capable of reading pressure accurately from 0-40 psi (0-276 kPa), connect the air pressure gauge to the Schrader Air Valve and read the tank’s air pressure.
4. The pressure as shipped is about 26 psi (179 kPa). The air pressure for proper system operation should be 28-32 psi (193-221 kPa). If the air pressure is below 28 psi (193 kPa) or above 32 psi (221 kPa), complete the following steps.
   • Using a standard bicycle pump, add or release air pressure in the tank.
   • Repeat until the pressure is 28-32 psi.
5. Close the tank sample valve and the sample valve on the outlet line. Open inlet and outlet valves. If you have booster pump, plug in. Allow sufficient time for the tank to refill before operating equipment. Approximate tank fill times are given in the table below.

________

Building Warranty: (Purchase Order Excerpt) BCubed Manufacturing LLC warrants the UNIT against defects in original materials or workmanship for a period of one (1) year from the installation date of the new UNIT. BCUBED will repair or replace, at its option and at no charge to PURCHASER, any work that is objectively defective, provided notice of the defect is given within the one-year warranty period. This warranty does not cover (1) finishes on wearing surfaces including floors (2) caulking (3) settling issues caused by subsoil conditions or defective foundation work (4) expansion, contraction, or settling cracks normal to construction (5) appliances, equipment, or other items of personal property (which may or may not have warranties provided by their manufacturer) (6) loss or damage due to flood, wind or other acts of nature or casualty losses.

EXCEPT FOR THE EXPRESS WARRANTY SET FORTH IN THIS PROVISION, SELLER MAKES NO WARRANTY WHATSOEVER REGARDING THE GOODS, INCLUDING ANY (1) WARRANTY OF MERCHANTABILITY; (2) WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE; (3) WARRANTY OF TITLE; OR (4) WARRANTY AGAINST INFRINGEMENT OF INTELLECTUAL PROPERTY RIGHTS OF A THIRD PARTY; WHETHER ARISING BY LAW, COURSE OF DEALING, COURSE OF PERFORMANCE, USAGE OF TRADE, OR OTHERWISE.

PURCHASER ACKNOWLEDGES THAT IT HAS NOT RELIED ON ANY REPRESENTATION OR WARRANTY MADE BY SELLER, OR ANY OTHER PERSON ON SELLER’S BEHALF, EXCEPT AS SPECIFICALLY PROVIDED IN THIS PROVISION.

This warranty is not transferrable. BCUBED’s obligation under this warranty is limited to repair or replacement of defective materials or workmanship and consequential or incidental damages are specifically excluded. In no event will BCUBED’s liability under this warranty exceed the total amount paid by PURCHASER to BCUBED under this AGREEMENT.

Should equipment be installed or later moved to a location different than shown on the UNIT construction plans or if electrical outlets are used contrary to labeling provided, PURCHASER may experience circuit overloading, issues with tripping breakers, or damage to equipment which is not BCUBED’S responsibility.

PURCHASER is responsible for submitting warranty documentation for appliances, equipment, or other items of personal property (which have warranties provided by their manufacturer). BCUBED provides no warranty for any item which it did not manufacture, including appliances and equipment. Warranties from the manufacturer of the appliances and equipment may be available.

Intellectual Property. All design, concept, drawings, plans, and specifications of the BCUBED® structure sold to Purchaser are the sole and exclusive intellectual property of BCubed Manufacturing LLC and its owner. Some of the intellectual property is covered by pending and existing patents. See U.S. Patent No D911,533, D937,437, 11,536,043. PURCHASER’S sole right to such intellectual property is limited to utilizing same for the UNIT purchased in this AGREEMENT. PURCHASER and professionals engaged by PURCHASER may not copy, duplicate, share with others such plans, drawings, specifications, etc. for the UNIT without the prior written consent of BCubed Manufacturing LLC and/or its owner. Such consent is at the sole and absolute discretion of the owner of this Intellectual Property and may be denied.
